Ethanol Extraction Systems

Need to process large amount of biomass? With our new line of C1D2 centrifuges for ethanol extraction. Paired ultra-low cooling tech, these centrifuges are able to scale your production, while maximizing efficiency. When running at these ultra-low temps, our consumers are able to to filter fats and lipids directly in-line with the C1D2 extraction centrifuge. With a steady spin, and large capacities, our centrifuges are high-quality. Each jacketed centrifuge comes with an explosion proof touch screen control panel for easy programming and control over the machine. Refine your standard operating procedures and get the most out of your centrifuge extraction system. Each extraction systems comes certified with an engineer peer review, guaranteeing your acceptance through your local municipality.

Order your 30 Gallon, 50 Gallon, 100 Gallon, and 200 Gallon C1D2 Centrifuges from a company that can provide a complete solution. For the first time, we are now offering to design your lab at no extra cost with purchase of a centrifuge extraction system & modular extraction booth. Each design comes with a PE fire protection engineer report stamped for your state, streamlining your entire project through site planning. This is a slingshot for the entire project, getting you operational faster! Have confidence in the equipment you order.

Don't forget to ask about our install, training, warranty and maintenance.

C1D2 Centrifuge Systems

Our 30G - 50G - 100G - 200G C1D2 Centrifuge Extraction Systems are now available for order. Process more biomass with a bigger centrifuge, these new large extraction systems can process 4,000-5,000 lbs a day. With our new fire rated extraction booths, we are able to create F1 occupancy facilities that can produce up to 18,000 lbs a day. Our centrifuge extraction systems have both high throughput and ultra-low temps. With our chilling solutions you will be able to extract faster, filter your fats and lipids in-line. Creating a more efficient solution to creating a purified extract. See our pricing below:

30 Gallon Centrifuge: $75,000
50 Gallon Centrifuge: $90,000
100 Gallon Centrifuge: $100,000
200 Gallon Centrifuge: $120,000

C1D1 Labs LLC is now proud to also be offering installation, training, warranty, and maintenance. Each centrifuge comes with a 1 year warranty that covers all electric and mechanical parts on the machine. Our full-time support team will be there to answer your technical questions whenever you need them. We will even fly out to your facility and teach you how to run the centrifuge and any other equipment you need help with. Our experienced technicians are well-known and respected for their knowledge and ability to educate.

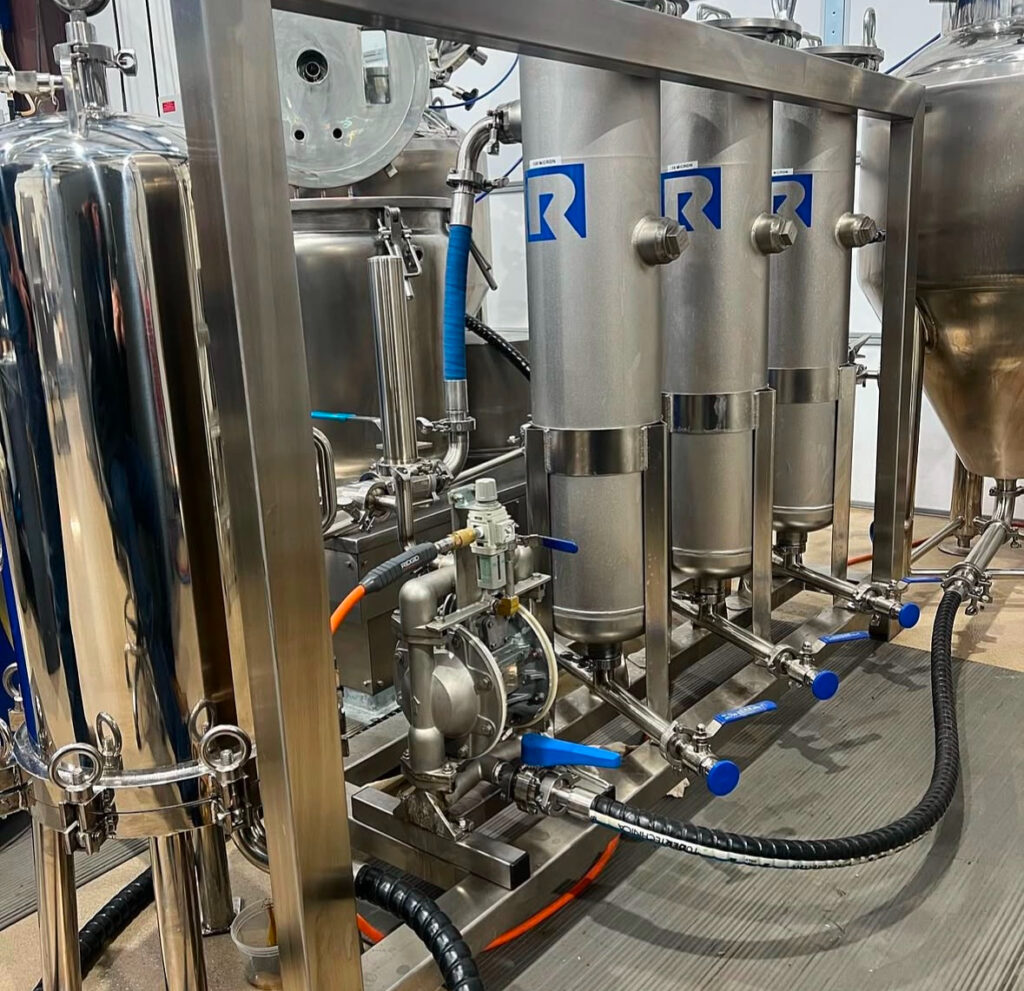

Inline Filtration for Centrifuge Systems

Using the C1D1 Labs cryogenic extraction process, we are able to filter fats, lipids and chlorophyll out of extracted solutions without any post processing. This means connecting the filter to the centrifuge and running the fluid through the filters as soon as it leaves the centrifugal extraction system. Through research and development, our team has used a combination of bag and lenticular filters to maximize filtration while minimizing cost of consumables.

By using a combination of 100, 10, and 1 micron filter bags we are able to use the 100 and 10 micron filter bags to filter a percentage of particulates before reaching the expensive 1 micron filter bag. This phased out model of filtration will end up minimizing consumption and increasing profitability. We take this same model of conservation and apply it to the 5 micron carbon fiber lenticular filter. By removing the fats and lipids at 1 micron before attempting to remove the dark color of your solution, our clients are able to minimize the cost of carbon filter.

This filter skid was personally designed by the founder and the team of engineers inside of our warehouse in Carson City, NV. We are one of the few cannabis engineering firms that focus on A to Z solutions. This is why process piping has become such a niche service that we offer. This understanding of the solvent movement has allowed us to create a pump that is very efficient. We have found a -40c stainless steel cryogenic diaphragm pump that runs 42 gpm and pre-installed a regulator and pulse reducer. This pump is connected to a sanitary hose which connects to the first filter, stainless sanitary piping connects the rest of the housings. We have options with (2) filter housing or (3) filter housings. I prefer the three filter housing option because it reduces the cost of the 1 micron filter and overall consumption cost for production. Each of these filter housings have independent drains which aid for clean in place SOPs. We love to engineer the manifolds for the entire front end of your processing line right from the pump on this system, which is why we have built a frame for you to do this when it arrives. Finally, we have created custom neoprene jackets to keep solvent cold during filtration
